JIC Hydraulikarmaturen
JIC-Fittings, auch Joint Industry Council-Fittings genannt, sind Gewinde, die häufig in Hydrauliksystemen verwendet werden. Es handelt sich um ein standardisiertes Gewinde mit einem 37-Grad-Bördelwinkel, das für seine Zuverlässigkeit und einfache Montage bekannt ist.
Beschreibung
Bei diesem Produkt handelt es sich um einen JIC-Anschluss (oder Joint Industry Council), beide Enden haben ein JIC-Gewinde, JIC ist durch die Standards SAE J514 und MIL-DTL-18866 definiert, es handelt sich um eine Art Bördelanschluss, der mit einer 37-Grad-Bördelsitzfläche bearbeitet wurde.
Sie werden üblicherweise aus Messing, Kohlenstoffstahl und Edelstahl hergestellt. JIC-Hydraulikarmaturen sind in den meisten Fluidtechniksystemen üblich. JIC-Gewinde werden auch in männliche und weibliche JIC-Gewinde mit Überwurfmutter unterteilt.
JIC kann mit vielen verschiedenen Threads kombiniert werden, wie zum Beispiel:

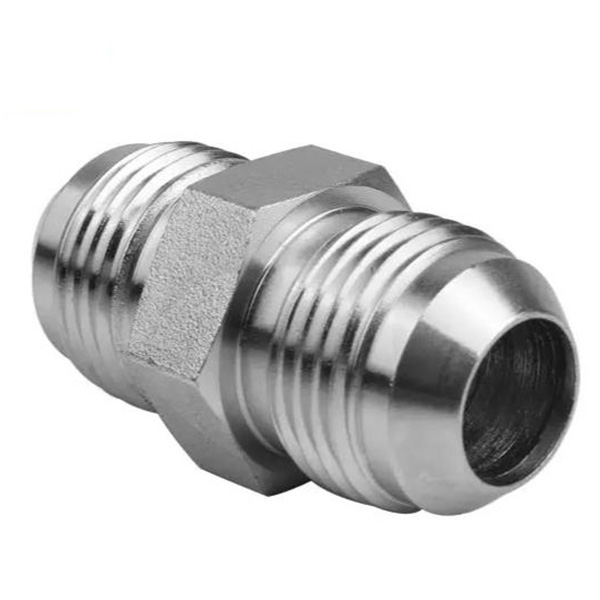

JIC-zu-JIC-Hydraulikadapter /1J
Hydraulikadapter JIC auf ORB (O-Ring-Anschluss)/1JO
Hydraulikadapter JIC zu ORFS (O-Ring-Gleitringdichtung)/1JF

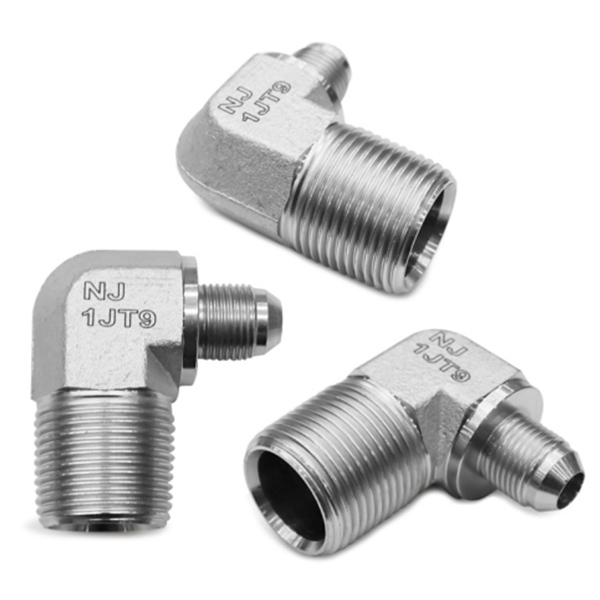

Hydraulikadapter mit 90-Grad-Kniestück, JIC auf NPTF/1JN9

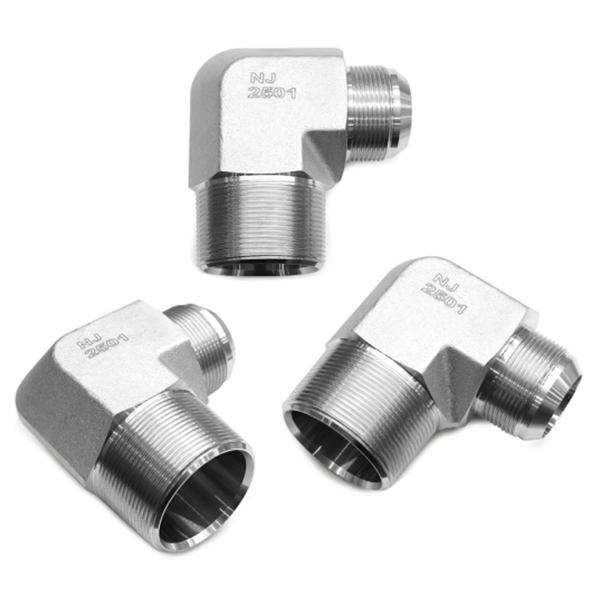

Hydraulikadapter, 90-Grad-Kniestück, JIC auf BSPT/1JT9
JIC-zu-metrische Hydraulikadapter/1JM

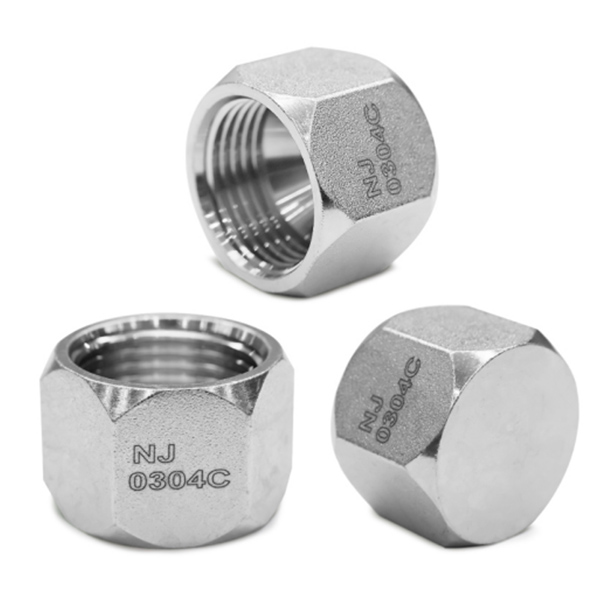

JIC-Kappen /0304C

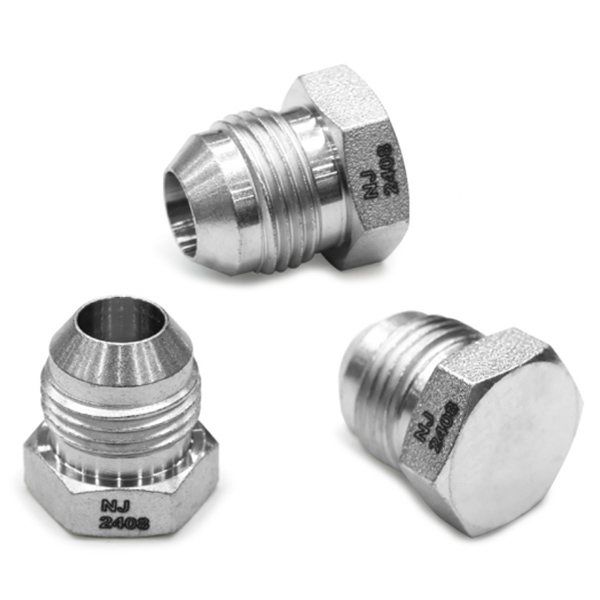

JIC-Stecker/2408

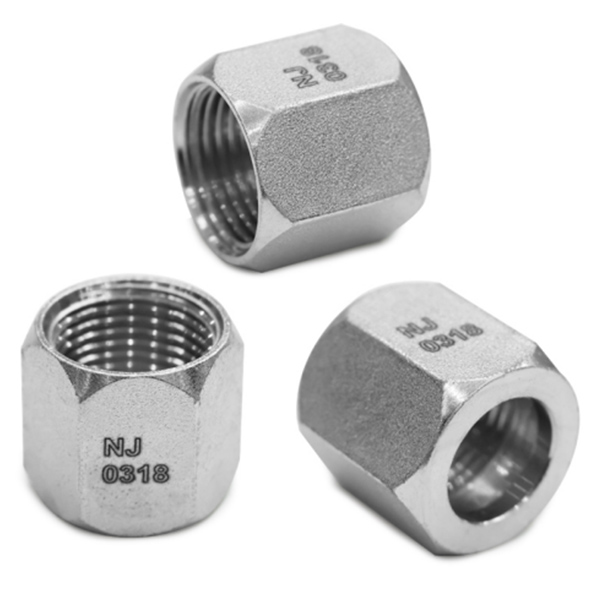

JIC-Rohrmutter/0318
JIC-Rohrhülse/0319Technische Daten
1. JIC-zu-JIC-Hydraulikadapter /1J
| A | B | Art.-Nr | L | E | F | H1 | ||
| Dash | JIC | Dash | JIC | mm | mm | mm | mm | |
| -6 | 2003-8-24 | -6 | 3 / 8-24 | 1J-0606 | 31 | 12 | 12 | 11.1 |
| -7 | 7 / 16-20 | -7 | 7 | 1J-0707 | 35 | 14 | 14 | 12.7 |
| -8 | 2001-2-20 | -7 | 7 | 1J-0807 | 35 | 14 | 14 | 14.3 |
| -8 | 2001-2-20 | -8 | 1 / 2-20 | 1J-0808 | 35 | 14 | 14 | 14.3 |
| -9 | 9 / 16-18 | -9 | 7 / 16-20 | 1J-0907 | 35 | 14 | 14 | 15.9 |
| -9 | 9 / 16-18 | -8 | 1 / 2-20 | 1J-0908 | 35 | 14 | 14 | 15.9 |
| -9 | 9 / 16-18 | -9 | 9 / 16-18 | 1J-0909 | 36 | 14 | 14 | 15.9 |
| -12 | 2003-4-16 | -7 | 7 / 16-20 | 1J-1207 | 38 | 17 | 14 | 20.6 |
| -12 | 2003-4-16 | -9 | 9 / 16-18 | 1J-1209 | 39 | 17 | 14 | 20.6 |
| -12 | 2003-4-16 | -12 | 3 / 4-16 | 1J-1212 | 41 | 17 | 17 | 20.6 |
| -14 | 2007-8-14 | -7 | 7 | 1J-1407 | 43 | 19 | 14 | 23.8 |
| -14 | 2007-8-14 | -8 | 1 / 2-20 | 1J-1408 | 42 | 19 | 14 | 23.8 |
| -14 | 2007-8-14 | -9 | 9 / 16-18 | 1J-1409 | 42 | 19 | 14 | 23.8 |
| -14 | 2007-8-14 | -12 | 3 / 4-16 | 1J-1412 | 45 | 19 | 17 | 23.8 |
| -14 | 2007-8-14 | -14 | 7 / 8-14 | 1J-1414 | 48 | 19 | 19 | 23.8 |
| -17 | 1.1 / 16-12 | -7 | 7 / 16-20 | 1J-1707 | 47 | 22 | 14 | 28.6 |
| -17 | 1.1 / 16-12 | -9 | 9 / 16-18 | 1J-1709 | 47 | 22 | 14 | 28.6 |
| -17 | 1.1 / 16-12 | -12 | 7 / 16-20 | 1J-1712 | 50 | 22 | 17 | 28.6 |
| -17 | 1.1 / 16-12 | -14 | 7 / 8-14 | 1J-1714 | 52 | 22 | 19 | 28.6 |
| -17 | 1.1 / 16-12 | -17 | 1.1 / 16-12 | 1J-1717 | 55 | 22 | 22 | 28.6 |
| -19 | 1.3 / 16-12 | -17 | 1.1 / 16-12 | 1J-1917 | 55 | 23 | 22 | 31.8 |
| -19 | 1.3 / 16-12 | -19 | 1.3 / 16-12 | 1J-1919 | 56 | 23 | 23 | 31.8 |
| -21 | 1.5 / 16-12 | -7 | 7 / 16-20 | 1J-2107 | 48 | 23 | 14 | 34.9 |
| -21 | 1.5 / 16-12 | -9 | 9 / 16-18 | 1J-2109 | 48 | 23 | 14 | 34.9 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4-16 | 1J-2112 | 51 | 23 | 17 | 34.9 |
| -21 | 1.5 / 16-12 | -14 | 7 / 8-14 | 1J-2114 | 53 | 23 | 19 | 34.9 |
| -21 | 1.5 / 16-12 | -17 | 1.1 / 16-12 | 1J-2117 | 56 | 23 | 22 | 34.9 |
| -21 | 1.5 / 16-12 | -21 | 1.5 / 16-12 | 1J-2121 | 57 | 23 | 23 | 34.9 |
| -26 | 1.5 / 8-12 | -17 | 1.1 / 16-12 | 1J-2617 | 59 | 24 | 22 | 42.9 |
| -26 | 1.5 / 8-12 | -21 | 1.5 / 16-12 | 1J-2621 | 61 | 24 | 23 | 42.9 |
| -26 | 1.5 / 8-12 | -26 | 1.5 / 8-12 | 1J-2626 | 62 | 24 | 24 | 42.9 |
| -30 | 1.7 / 8-12 | -17 | 1.1 / 16-12 | 1J-3017 | 64 | 28 | 22 | 50.8 |
| -30 | 1.7 / 8-12 | -21 | 1.5 / 16-12 | 1J-3021 | 66 | 28 | 23 | 50.8 |
| -30 | 1.7 / 8-12 | -26 | 1.5 / 8-12 | 1J-3026 | 67 | 28 | 24 | 50.8 |
| -30 | 1.7 / 8-12 | -30 | 1.7 / 8-12 | 1J-3030 | 70 | 28 | 28 | 50.8 |
| -40 | 2.1 / 2-12 | -21 | 1.5 / 16-12 | 1J-4021 | 76 | 34 | 23 | 66.7 |
| -40 | 2.1 / 2-12 | -26 | 1.5 / 8-12 | 1J-4026 | 77 | 34 | 24 | 66.7 |
| -40 | 2.1 / 2-12 | -30 | 1.7 / 8-12 | 1J-4030 | 80 | 34 | 28 | 66.7 |
| -40 | 2.1 / 2-12 | -40 | 2.1 / 2-12 | 1J-4040 | 86 | 34 | 34 | 66.7 |
2. JIC zu ORB (O-Ring-Nabe) Hydraulikadapter/1JO
| A | B | Art.-Nr | L | E | F | H1 | ||
| Dash | JIC | Dash | Ein | mm | mm | mm | mm | |
| -5 | 5 / 16-24 | -7 | 7 / 16-20 | 1JO-0507 | 29 | 12 | 9 | 14.3 |
| -6 | 2003-8-24 | -6 | 3 / 8-24 | 1JO-0606 | 28 | 12 | 8 | 12.7 |
| -6 | 2003-8-24 | -7 | 7 / 16-20 | 1JO-0607 | 29 | 12 | 9 | 14.3 |
| -7 | 7 / 16-20 | -7 | 7 / 16-20 | 1JO-0707 | 29 | 14 | 9 | 14.3 |
| -7 | 7 / 16-20 | -8 | 1 / 2-20 | 1JO-0708 | 29 | 14 | 9 | 15.9 |
| -7 | 7 / 16-20 | -9 | 9 / 16-18 | 1JO-0709 | 30 | 14 | 10 | 17.5 |
| -7 | 7 / 16-20 | -12 | 3 / 4-16 | 1JO-0712 | 33 | 14 | 11 | 22.2 |
| -7 | 7 / 16-20 | -14 | 7 / 8-14 | 1JO-0714 | 38 | 14 | 13 | 25.4 |
| -7 | 7 / 16-20 | -17 | 1.1 / 16-12 | 1JO-0717 | 42 | 14 | 15 | 31.8 |
| -7 | 7 / 16-20 | -21 | 1.5 / 16-12 | 1JO-0721 | 43 | 14 | 15 | 38.1 |
| -8 | 2001-2-20 | -7 | 7 / 16-20 | 1JO-0807 | 31 | 14 | 9 | 14.3 |
| -8 | 2001-2-20 | -8 | 1 / 2-20 | 1JO-0808 | 29 | 14 | 9 | 15.8 |
| -8 | 2001-2-20 | -9 | 9 / 16-18 | 1JO-0809 | 33 | 14 | 9 | 17.5 |
| -8 | 2001-2-20 | -12 | 3 / 4-16 | 1JO-0812 | 33 | 14 | 11 | 22.2 |
| -9 | 9 / 16-18 | -7 | 7 / 16-20 | 1JO-0907 | 29 | 14 | 9 | 17.5 |
| -9 | 9 / 16-18 | -8 | 1 / 2-20 | 1JO-0908 | 30 | 14 | 9 | 17.5 |
| -9 | 9 / 16-18 | -9 | 9 / 16-18 | 1JO-0909 | 30 | 14 | 10 | 17.5 |
| -9 | 9 / 16-18 | -12 | 3 / 4-16 | 1JO-0912 | 33 | 14 | 11 | 22.2 |
| -9 | 9 / 16-18 | -14 | 7 / 8-14 | 1JO-0914 | 37 | 14 | 13 | 25.4 |
| -9 | 9 / 16-18 | -17 | 1.1 / 16-12 | 1JO-0917 | 40 | 14 | 15 | 31.8 |
| -9 | 9 / 16-18 | -21 | 1.5 / 16-12 | 1JO-0921 | 43 | 14 | 15 | 38.1 |
| -12 | 2003-4-16 | -7 | 7 / 16-20 | 1JO-1207 | 34 | 17 | 9 | 22.2 |
| -12 | 2003-4-16 | -8 | 1 / 2-20 | 1JO-1208 | 38 | 17 | 9 | 22.2 |
| -12 | 2003-4-16 | -9 | 9 / 16-18 | 1JO-1209 | 35 | 17 | 10 | 22.2 |
| -12 | 2003-4-16 | -12 | 3 / 4-16 | 1JO-1212 | 36 | 17 | 11 | 22.2 |
| -12 | 2003-4-16 | -14 | 7 / 8-14 | 1JO-1214 | 40 | 17 | 13 | 25.4 |
| -12 | 2003-4-16 | -17 | 1.1 / 16-12 | 1JO-1217 | 43 | 17 | 15 | 31.8 |
| -12 | 2003-4-16 | -21 | 1.5 / 16-12 | 1JO-1221 | 43 | 17 | 15 | 38.1 |
| -14 | 2007-8-14 | -9 | 9 / 16-18 | 1JO-1409 | 43 | 19 | 9 | 25.4 |
| -14 | 2007-8-14 | -12 | 3 / 4-16 | 1JO-1412 | 39 | 19 | 11 | 25.4 |
| -14 | 2007-8-14 | -14 | 7 / 8-14 | 1JO-1414 | 43 | 19 | 13 | 25.4 |
| -14 | 2007-8-14 | -17 | 1.1 / 16-12 | 1JO-1417 | 46 | 19 | 15 | 31.8 |
| -14 | 2007-8-14 | -21 | 1.5 / 16-12 | 1JO-1421 | 46 | 19 | 15 | 38.1 |
| -14 | 2007-8-14 | -26 | 1.5 / 8-12 | 1JO-1426 | 50 | 19 | 15 | 47.6 |
| -17 | 1.1 / 16-12 | -9 | 9 / 16-18 | 1JO-1709 | 47 | 22 | 9 | 31.8 |
| -17 | 1.1 / 16-12 | -12 | 3 / 4-16 | 1JO-1712 | 43 | 22 | 11 | 31.8 |
| -17 | 1.1 / 16-12 | -14 | 7 / 8-14 | 1JO-1714 | 45 | 22 | 13 | 31.8 |
| -17 | 1.1 / 16-12 | -17 | 1.1 / 16-12 | 1JO-1717 | 48 | 22 | 15 | 31.8 |
| -17 | 1.1 / 16-12 | -19 | 1.3 / 16-12 | 1JO-1719 | 48 | 22 | 15 | 34.9 |
| -17 | 1.1 / 16-12 | -21 | 1.5 / 16-12 | 1JO-1721 | 48 | 22 | 15 | 38.1 |
| -17 | 1.1 / 16-12 | -26 | 1.5 / 8-12 | 1JO-1726 | 48 | 22 | 15 | 47.6 |
| -17 | 1.1 / 16-12 | -30 | 1.7 / 8-12 | 1JO-1730 | 55 | 22 | 15 | 54 |
| -19 | 1.3 / 16-12 | -17 | 1.1 / 16-12 | 1JO-1917 | 51 | 23 | 15 | 31.8 |
| -19 | 1.3 / 16-12 | -19 | 1.3 / 16-12 | 1JO-1919 | 51 | 23 | 15 | 34.9 |
| -19 | 1.3 / 16-12 | -21 | 1.5 / 16-12 | 1JO-1921 | 51 | 23 | 15 | 38.1 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4-16 | 1JO-2112 | 51 | 23 | 11 | 34.9 |
| -21 | 1.5 / 16-12 | -14 | 7 / 8-14 | 1JO-2114 | 47 | 23 | 13 | 34.9 |
| -21 | 1.5 / 16-12 | -17 | 1.1 / 16-12 | 1JO-2117 | 49 | 23 | 15 | 34.9 |
| -21 | 1.5 / 16-12 | -19 | 1.3 / 16-12 | 1JO-2119 | 49 | 23 | 15 | 34.9 |
| -21 | 1.5 / 16-12 | -21 | 1.5 / 16-12 | 1JO-2121 | 49 | 23 | 15 | 38.1 |
| -21 | 1.5 / 16-12 | -26 | 1.5 / 8-12 | 1JO-2126 | 55 | 23 | 15 | 47.6 |
| -21 | 1.5 / 16-12 | -30 | 1.7 / 8-12 | 1JO-2130 | 56 | 23 | 15 | 54 |
| -26 | 1.5 / 8-12 | -14 | 7 / 8-14 | 1JO-2614 | 57 | 24 | 13 | 42.9 |
| -26 | 1.5 / 8-12 | -17 | 1.1 / 16-12 | 1JO-2617 | 55 | 24 | 15 | 42.9 |
| -26 | 1.5 / 8-12 | -21 | 1.5 / 16-12 | 1JO-2621 | 55 | 24 | 15 | 42.9 |
| -26 | 1.5 / 8-12 | -26 | 1.5 / 8-12 | 1JO-2626 | 55 | 24 | 15 | 47.6 |
| -26 | 1.5 / 8-12 | -30 | 1.7 / 8-12 | 1JO-2630 | 55 | 24 | 15 | 54 |
| -30 | 1.7-8-12 | -26 | 1.5 / 8-12 | 1JO-3026 | 60 | 28 | 15 | 54 |
| -30 | 1.7-8-12 | -30 | 1.7 / 8-12 | 1JO-3030 | 58 | 28 | 15 | 54 |
| -30 | 1.7 / 8-12 | -40 | 2.1 / 2-12 | 1JO-3040 | 64 | 28 | 15 | 69.9 |
| -40 | 2.1 / 2-12 | -40 | 2.1 / 2-12 | 1JO-4040 | 66 | 34 | 15 | 69.9 |
3. JIC zu ORFS (O-Ring-Gleitringdichtung) Hydraulikadapter/1JF
| Gewinde A | Gewinde B | Art.-Nr | L | E | F | H1 | ||
| Dash | JIC | Dash | ORFS | mm | mm | mm | mm | |
| -07 | 7 / 16-20 | -09 | 9 / 16-18 | 1JF-0709 | 32 | 14 | 10 | 15.9 |
| -07 | 7 / 16-20 | -11 | 11 / 16-16 | 1JF-0711 | 34 | 14 | 11 | 19.1 |
| -09 | 9 / 16-18 | -11 | 11 / 16-16 | 1JF-0911 | 34 | 14 | 11 | 19.1 |
| -12 | 3 / 4-16 | -11 | 11 / 16-16 | 1JF-1211 | 38 | 17 | 11 | 22.2 |
| -12 | 3 / 4-16 | -13 | 13 / 16-16 | 1JF-1213 | 39 | 17 | 13 | 22.2 |
| -14 | 7 / 8-14 | -13 | 13 / 16-16 | 1JF-1413 | 40 | 19 | 13 | 25.4 |
| -14 | 7 / 8-14 | -16 | +1 14 - XNUMX | 1JF-1416 | 46 | 19 | 16 | 27.0 |
| -17 | 1.1 / 16-12 | -16 | +1 14 - XNUMX | 1JF-1716 | 50 | 22 | 16 | 31.8 |
| -17 | 1.1 / 16-12 | -19 | 1.3 / 16-12 | 1JF-1719 | 52 | 22 | 17 | 31.8 |
| -21 | 1.5 / 16-12 | -19 | 1.3 / 16-12 | 1JF-2119 | 55 | 23 | 17 | 38.1 |
| -21 | 1.5 / 16-12 | -23 | 1.7 / 16-12 | 1JF-2123 | 55 | 23 | 18 | 38.1 |
| -26 | 1.5 / 8-12 | -27 | 1.11 / 16-12 | 1JF-2627 | 58 | 24 | 18 | 44.5 |
4. JIC-auf-NPTF-90-Grad-Kniestück-Hydraulikadapter/1JN9
| Gewinde A | Gewinde B | Art.-Nr | E | F | S1 | |||
| Dash | JIC | Dash | NPT | mm | mm | mm | ||
| -07 | 7 / 16-20 | -02 | 1 / 8-27 | 1JN9-0702 | 25 | 21 | 11 | |
| -07 | 7 / 16-20 | -04 | 1 / 4-18 | 1JN9-0704 | 27 | 26 | 14 | |
| -07 | 7 / 16-20 | -06 | 3 / 8-18 | 1JN9-0706 | 30 | 31 | 19 | |
| -07 | 7 / 16-20 | -08 | 1 / 2-14 | 1JN9-0708 | 31 | 37 | 22 | |
| -07 | 7 / 16-20 | -12 | 3 / 4-14 | 1JN9-0712 | 33 | 44 | 27 | |
| -08 | 1 / 2-20 | -02 | 1 / 8-27 | 1JN9-0802 | 27 | 24 | 14 | |
| -08 | 1 / 2-20 | -04 | 1 / 4-18 | 1JN9-0804 | 27 | 26 | 14 | |
| -08 | 1 / 2-20 | -06 | 3 / 8-18 | 1JN9-0806 | 30 | 31 | 19 | |
| -09 | 9 / 16-18 | -02 | 1 / 8-27 | 1JN9-0902 | 27 | 21 | 14 | |
| -09 | 9 / 16-18 | -04 | 1 / 4-18 | 1JN9-0904 | 27 | 26 | 14 | |
| -09 | 9 / 16-18 | -06 | 3 / 8-18 | 1JN9-0906 | 30 | 31 | 19 | |
| -09 | 9 / 16-18 | -08 | 1 / 2-14 | 1JN9-0908 | 32 | 37 | 22 | |
| -09 | 9 / 16-18 | -12 | 3 / 4-14 | 1JN9-0912 | 33 | 40 | 27 | |
| -12 | 3 / 4-16 | -04 | 1 / 4-18 | 1JN9-1204 | 32 | 29 | 19 | |
| -12 | 3 / 4-16 | -06 | 3 / 8-18 | 1JN9-1206 | 32 | 31 | 19 | |
| -12 | 3 / 4-16 | -08 | 1 / 2-14 | 1JN9-1208 | 35 | 37 | 22 | |
| -12 | 3 / 4-16 | -12 | 3 / 4-14 | 1JN9-1212 | 38 | 44 | 27 | |
| -12 | 3 / 4-16 | -16 | +1 11 - XNUMX | 1JN9-1216 | 39 | 50 | 33 | |
| -14 | 7 / 8-14 | -04 | 1 / 4-18 | 1JN9-1404 | 38 | 34 | 22 | |
| -14 | 7 / 8-14 | -06 | 3 / 8-18 | 1JN9-1406 | 38 | 33 | 22 | |
5. JIC auf BSPP 45-Grad-Kniestück-Hydraulikadapter/1JG4
| A | B | Art.-Nr | E | F | S1 | H | |||
| Dash | JIC | Dash | BSPP | mm | mm | mm | mm | ||
| -07 | 7 / 16-20 | -02 | 1 / 8-28 | 1JG4-0702 | 18 | 22 | 11 | 14 | |
| -07 | 7 / 16-20 | -04 | 1 / 4-19 | 1JG4-0704 | 22 | 26 | 14 | 19 | |
| -07 | 7 / 16-20 | -06 | 3 / 8-19 | 1JG4-0706 | 23 | 33 | 19 | 22 | |
| -09 | 9 / 16-18 | -04 | 1 / 4-19 | 1JG4-0904 | 22 | 28 | 14 | 19 | |
| -09 | 9 / 16-18 | -06 | 3 / 8-19 | 1JG4-0906 | 23 | 32 | 19 | 22 | |
| -09 | 9 / 16-18 | -08 | 1 / 2-14 | 1JG4-0908 | 25 | 36 | 22 | 27 | |
| -12 | 3 / 4-16 | -04 | 1 / 4-19 | 1JG4-1204 | 25 | 31 | 19 | 19 | |
| -12 | 3 / 4-16 | -06 | 3 / 8-19 | 1JG4-1206 | 25 | 32 | 19 | 22 | |
| -12 | 3 / 4-16 | -08 | 1 / 2-14 | 1JG4-1208 | 25 | 36 | 22 | 27 | |
| -12 | 3 / 4-16 | -12 | 3 / 4-12 | 1JG4-1212 | 30 | 37 | 27 | 32 | |
| -14 | 7 / 8-14 | -06 | 3 / 8-19 | 1JG4-1406 | 28 | 33 | 22 | 22 | |
| -14 | 7 / 8-14 | -08 | 1 / 2-14 | 1JG4-1408 | 28 | 36 | 22 | 27 | |
| -14 | 7 / 8-14 | -12 | 3 / 4-14 | 1JG4-1412 | 32 | 37 | 27 | 27 | |
| -17 | 1.1 / 16-12 | -08 | 1 / 2-14 | 1JG4-1708 | 33 | 37 | 27 | 27 | |
| -17 | 1.1 / 16-12 | -12 | 3 / 4-14 | 1JG4-1712 | 33 | 37 | 27 | 32 | |
| -17 | 1.1 / 16-12 | -16 | +1 11 - XNUMX | 1JG4-1716 | 35 | 44 | 33 | 41 | |
| -21 | 1.5 / 16-12 | -16 | +1 11 - XNUMX | 1JG4-2116 | 42 | 44 | 33 | 41 | |
| -26 | 1.5 / 8-12 | -20 | 1.1 / 4-11 | 1JG4-2620 | 40 | 47 | 41 | 50 | |
| -30 | 1.7 / 8-12 | -24 | +1.1.2 11 - XNUMX | 1JG4-3024 | 45 | 51 | 48 | 55 | |
6. JIC auf BSPT 90-Grad-Kniestück-Hydraulikadapter/1JT9
| A | B | Art.-Nr | E | F | S1 | ||
| Dash | JIC | Dash | PTBS | mm | mm | mm | |
| -07 | 7 / 16-20 | -02 | 1 / 8-28 | 1JT9-0702 | 25 | 21 | 11 |
| -07 | 7 / 16-20 | -04 | 1 / 4-19 | 1JT9-0704 | 27 | 26 | 14 |
| -07 | 7 / 16-20 | -06 | 3 / 8-19 | 1JT9-0706 | 28 | 28.4 | 19 |
| -07 | 7 / 16-20 | -08 | 1 / 2-14 | 1JT9-0708 | 30 | 36 | 22 |
| -08 | 1 / 2-20 | -02 | 1 / 8-28 | 1JT9-0802 | 27 | 24 | 14 |
| -08 | 1 / 2-20 | -04 | 1 / 4-19 | 1JT9-0804 | 27 | 26 | 14 |
| -08 | 1 / 2-20 | -06 | 3 / 8-19 | 1JT9-0806 | 28 | 28.4 | 19 |
| -09 | 9 / 16-18 | -02 | 1 / 8-28 | 1JT9-0902 | 27 | 24 | 14 |
| -09 | 9 / 16-18 | -04 | 1 / 4-19 | 1JT9-0904 | 27 | 26 | 14 |
| -09 | 9 / 16-18 | -06 | 3 / 8-19 | 1JT9-0906 | 29 | 29.0 | 19 |
| -09 | 9 / 16-18 | -08 | 1 / 2-14 | 1JT9-0908 | 32 | 36 | 22 |
| -09 | 9 / 16-18 | -12 | 3 / 4-14 | 1JT9-0912 | 35 | 44 | 27 |
| -12 | 3 / 4-16 | -04 | 1 / 4-19 | 1JT9-1204 | 32 | 28 | 19 |
| -12 | 3 / 4-16 | -06 | 3 / 8-19 | 1JT9-1206 | 32 | 31 | 19 |
| -12 | 3 / 4-16 | -08 | 1 / 2-14 | 1JT9-1208 | 35 | 36 | 22 |
| -12 | 3 / 4-16 | -12 | 3 / 4-14 | 1JT9-1212 | 38 | 43 | 27 |
| -12 | 3 / 4-16 | -16 | +1 11 - XNUMX | 1JT9-1216 | 43 | 50 | 33 |
| -14 | 7 / 8-14 | -06 | 3 / 8-19 | 1JT9-1406 | 38 | 32 | 22 |
| -14 | 7 / 8-14 | -08 | 1 / 2-14 | 1JT9-1408 | 37 | 36 | 22 |
| -14 | 7 / 8-14 | -12 | 3 / 4-14 | 1JT9-1412 | 41 | 43 | 27 |
| -14 | 7 / 8-14 | -16 | +1 11 - XNUMX | 1JT9-1416 | 45 | 50 | 33 |
| -17 | 1.1 / 16-12 | -08 | 1 / 2-14 | 1JT9-1708 | 44 | 40 | 27 |
| -17 | 1.1 / 16-12 | -12 | 3 / 4-14 | 1JT9-1712 | 44 | 43 | 27 |
| -17 | 1.1 / 16-12 | -16 | +1 11 - XNUMX | 1JT9-1716 | 48 | 50 | 33 |
| -17 | 1.1 / 16-12 | -20 | 1.1 / 4-11 | 1JT9-1720 | 49 | 57 | 41 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4-14 | 1JT9-2112 | 49 | 48 | 33 |
| -21 | 1.5 / 16-12 | -16 | +1 11 - XNUMX | 1JT9-2116 | 49 | 50 | 33 |
| -21 | 1.5 / 16-12 | -20 | 1.1 / 4-11 | 1JT9-2120 | 51 | 57 | 41 |
| -26 | 1.5 / 8-12 | -16 | +1 11 - XNUMX | 1JT9-2616 | 56 | 57 | 41 |
| -26 | 1.5 / 8-12 | -20 | 1.1 / 4-11 | 1JT9-2620 | 53 | 57 | 41 |
| -26 | 1.5 / 8-12 | -24 | 1.1 / 2-11 | 1JT9-2624 | 56 | 63 | 48 |
| -30 | 1.7 / 8-12 | -20 | 1.1 / 4-11 | 1JT9-3020 | 63 | 63 | 48 |
| -30 | 1.7 / 8-12 | -24 | 1.1 / 2-11 | 1JT9-3024 | 63 | 63 | 48 |
| -40 | 2.1 / 2-12 | -32 | +2 11 - XNUMX | 1JT9-4032 | 75 | 67 | 63 |
7. JIC-zu-metrische Hydraulikadapter/1JM
| Gewinde A | Gewinde B | Art.-Nr | L | E | F | H1 | ||
| Dash | JIC | Dash | Metrisch | mm | mm | mm | mm | |
| -7 | 7 / 16-20 | -6 | 6x1.0 | 1JM-0706 | 28 | 14 | 7 | 12 |
| -7 | 7 / 16-20 | -8 | 8x1.0 | 1JM-0708 | 28 | 14 | 7 | 12 |
| -7 | 7 / 16-20 | -10 | 10x1.0 | 1JM-0710ES | 30 | 14 | 8 | 14 |
| -7 | 7 / 16-20 | -12 | 12x1.5 | 1JM-0712ES | 36 | 14 | 12 | 17 |
| -7 | 7 / 16-20 | -14 | 14x1.5 | 1JM-0714ES | 39 | 14 | 12 | 17 |
| -7 | 7 / 16-20 | -16 | 16x1.5 | 1JM-0716ES | 36 | 14 | 12 | 22 |
| -9 | 9 / 16-18 | -10 | 10x1.0 | 1JM-0910ES | 31 | 14 | 8 | 17 |
| -9 | 9 / 16-18 | -12 | 12x1.5 | 1JM-0912ES | 36 | 14 | 12 | 17 |
| -9 | 9 / 16-18 | -14 | 14x1.5 | 1JM-0914ES | 36 | 14 | 12 | 19 |
| -9 | 9 / 16-18 | -16 | 16x1.5 | 1JM-0916ES | 36 | 14 | 12 | 22 |
| -9 | 9 / 16-18 | -18 | 18x1.5 | 1JM-0918ES | 37 | 14 | 12 | 24 |
| -9 | 9 / 16-18 | -20 | 20x1.5 | 1JM-0920ES | 40 | 14 | 14 | 27 |
| -9 | 9 / 16-18 | -22 | 22x1.5 | 1JM-0922ES | 40 | 14 | 14 | 27 |
| -12 | 2003-4-16 | -12 | 12x1.5 | 1JM-1212ES | 39 | 17 | 12 | 22 |
| -12 | 2003-4-16 | -14 | 14x1.5 | 1JM-1214ES | 39 | 17 | 12 | 22 |
| -12 | 2003-4-16 | -16 | 16x1.5 | 1JM-1216ES | 39 | 17 | 12 | 22 |
| -12 | 2003-4-16 | -18 | 18x1.5 | 1JM-1218ES | 39 | 17 | 12 | 24 |
| -12 | 2003-4-16 | -20 | 20x1.5 | 1JM-1220ES | 43 | 17 | 14 | 27 |
| -12 | 2003-4-16 | -22 | 22x1.5 | 1JM-1222ES | 43 | 17 | 14 | 27 |
| -12 | 2003-4-16 | -26 | 26x1.5 | 1JM-1226ES | 47 | 17 | 16 | 32 |
| -14 | 2007-8-14 | -14 | 14x1.5 | 1JM-1414ES | 41 | 19 | 12 | 24 |
| -14 | 2007-8-14 | -16 | 16x1.5 | 1JM-1416ES | 41 | 19 | 12 | 24 |
| -14 | 2007-8-14 | -18 | 18x1.5 | 1JM-1418ES | 42 | 19 | 12 | 24 |
| -14 | 2007-8-14 | -20 | 20x1.5 | 1JM-1420ES | 45 | 19 | 14 | 27 |
| -14 | 2007-8-14 | -22 | 22x1.5 | 1JM-1422ES | 45 | 19 | 14 | 27 |
| -14 | 2007-8-14 | -26 | 26x1.5 | 1JM-1426ES | 49 | 19 | 16 | 32 |
| -17 | 1.1 / 16-12 | -18 | 18x1.5 | 1JM-1718ES | 45 | 22 | 12 | 30 |
| -17 | 1.1 / 16-12 | -20 | 20x1.5 | 1JM-1720ES | 46 | 22 | 14 | 30 |
| -17 | 1.1 / 16-12 | -22 | 22x1.5 | 1JM-1722ES | 49 | 22 | 14 | 30 |
| -17 | 1.1 / 16-12 | -24 | 24x1.5 | 1JM-1724 | 48 | 22 | 14 | 30 |
| -17 | 1.1 / 16-12 | -26 | 26x1.5 | 1JM-1726ES | 52 | 22 | 16 | 32 |
| -17 | 1.1 / 16-12 | -27 | 27x2.0 | 1JM-1727 | 52 | 22 | 16 | 32 |
| -17 | 1.1 / 16-12 | -27 | 27x2.0 | 1JM-1727ES | 52 | 22 | 16 | 32 |
| -17 | 1.1 / 16-12 | -28 | 28x1.5 | 1JM-1728 | 52 | 23 | 16 | 32 |
| -17 | 1.1 / 16-12 | -30 | 30x2.0 | 1JM-1730 | 52 | 22 | 16 | 36 |
| -21 | 1.5 / 16-12 | -33 | 33x2.0 | 1JM-1733ES | 52 | 22 | 16 | 38 |
| -21 | 1.5 / 16-12 | -26 | 26x1.5 | 1JM-2126ES | 53 | 23 | 18 | 36 |
| -21 | 1.5 / 16-12 | -27 | 27x2.0 | 1JM-2127ES | 53 | 23 | 20 | 36 |
| -26 | 1.5 / 16-12 | -33 | 33x2.0 | 1JM-2133ES | 55 | 23 | 18 | 41 |
| -21 | 1.5 / 16-12 | -42 | 42x2.0 | 1JM-2142ES | 57 | 23 | 20 | 50 |
| -26 | 1.5 / 8-12 | -42 | 42x2.0 | 1JM-2642ES | 58 | 24 | 20 | 50 |
| -30 | 1.7 / 8-12 | -48 | 48x2.0 | 1JM-3048ES | 65 | 28 | 22 | 55 |
Details
JIC-Hydraulikverschraubungen erfreuen sich aufgrund ihrer zahlreichen Vorteile in der Branche großer Beliebtheit. Sie bieten eine sichere und zuverlässige Verbindung, die für Hydrauliksysteme unerlässlich ist. Hier sind einige wichtige Vorteile der Verwendung von JIC-Hydraulikverschraubungen:
1. Auslaufsichere Verbindung: JIC-Anschlüsse bieten eine dichte Abdichtung, die Leckagen verhindert und so den effizienten Betrieb von Hydrauliksystemen gewährleistet.
2. Einfache Installation: JIC-Armaturen sind schnell und einfach zu installieren, was Zeit und Arbeitskosten spart.
3. Robust und langlebig: Die Armaturen sind aus hochwertigen Materialien gefertigt und dadurch langlebig und verschleißfest. Dies gewährleistet eine lange Lebensdauer der Armaturen.
4. Vielseitig: JIC-Anschlüsse sind mit einer Vielzahl von Hydrauliksystemen und -geräten kompatibel und somit eine vielseitige Wahl für verschiedene Anwendungen.
5. Hohe Druckfestigkeit: JIC-Armaturen halten hohen Drücken stand und eignen sich daher für den Einsatz in anspruchsvollen Hydraulikanwendungen.
6. Standardisiertes Design: JIC-Armaturen folgen einem standardisierten Design, das Austauschbarkeit und Kompatibilität mit anderen Armaturen ermöglicht und so die Wahrscheinlichkeit von Fehlern bei der Installation verringert.
Zusammenfassend lässt sich sagen, dass JIC-Hydraulikarmaturen zahlreiche Vorteile bieten, die sie zu einer beliebten Wahl für Hydrauliksysteme machen. Ihre dichte Verbindung, einfache Installation, Langlebigkeit, Vielseitigkeit, hohe Druckfestigkeit und standardisierte Bauweise machen sie zur idealen Wahl für verschiedene Anwendungen.
Lieferung von JIC-Hydraulikarmaturen an Städte in
